Three more tessellating typefaces have been added to Myfonts.com. Included is a fourth typeface of birds, TessieXtraBirds. When playing with TesselManiac and before it TesselMania, I have had the tendency to see bird possibilities much more readily than other shapes.

The other two typefaces have a variety of shapes and no clear theme as their names indicate. Below is a poster for TessieMoreStuff. The plane shape has four edges that are all shaped with identical center-point rotation. The poster has them in three different tiling arrangements.

The musical notes from TessieMiscellaneous are a based on a triangle. It is a pattern unlike any that I have seen elsewhere.

Each family contains two styles, a solid style that must be colored and an outline style that can be used alone or layered over the solid style (as shown in the two top illustrations). Each has a sample file that shows what key combination are needed to produce the various patterns that are possible.

(Cross posted at nohypetype.blogspot.com)

## Thursday, December 6, 2018

## Tuesday, November 20, 2018

### Tessellating Typefaces (part 2)

Three more tessellating typefaces have been added to Myfonts.com. Included is another typeface of birds, TessieMoreBirds. Many of the bird shapes in this typeface are of swimming birds. I noticed that combining two of the swimming birds in the tiling below would result in both swimming and flying birds (shown on the right). (The flying birds will not tessellate alone.)

TessieSpinners has a variety of shapes that have suggest spinning or rotating.

Finally, TessieAnimals has tessellating shapes that resemble fish and mammals.

Part 1, with three other tessellating typefaces, is here.

(Cross posted to NoHypeType.blogspot.com)

TessieSpinners has a variety of shapes that have suggest spinning or rotating.

Finally, TessieAnimals has tessellating shapes that resemble fish and mammals.

Part 1, with three other tessellating typefaces, is here.

(Cross posted to NoHypeType.blogspot.com)

Labels:
tessellations,
typefaces

## Friday, November 9, 2018

### Tessellation typefaces (part 1)

Over the past twenty years I have developed/created/found a lot of tessellations patterns as I have designed maze books, coloring books, an activity book, and a book about tessellations. A few years ago I decided to make a couple of typefaces from some of this material, but those typefaces were only outlines. This past year I again decided to try to use this material, which has since grown, in typefaces. After a dead end or two, I have mostly finished the effort and am now putting the resulting typefaces on myfonts.com. In this new effort I have both outline and solid versions of each pattern so that the user has much greater flexibility than with the first efforts. To aid the user in using the fonts, for each there is a gallery file in a pdf format that shows what characters are needed to get each tessellation pattern.

TessiePuzzlePieces contain puzzle pieces. The reason I created these shapes can be found at the link.

TessieStandingBirds was a result from a quest to see how many different Heesch types I could illustrate with birds standing on the backs of other birds.

TessieFlyingBirds has a large variety of flying birds. I tried to limit the use of characters that are not readily reached from the standard keyboard, so some flying bird shapes are on other Tessie fonts that are in the process of being put on Myfonts.com.

To get a tessellation pattern can require as few as one character but usually two, three, four, or six are required. The pattern above requires two characters because alternate rows are indented.

This illustration below shows three ways these fonts can be used. On the left is the solid style by itself, in the middle the solid style is overlaid with the outline style, and on the right the outline style is alone This shape is unusual because there are two ways to tile it. In the top six row of the picture, birds are flying both to the left and to the right. In the bottom four rows birds are flying only to the left.

For those who like the technical details of tessellations, the top birds are tiled as Heesch type TGGTCC while those on the bottom are tiled as Heesch type TG1G1TG2G2.

(Cross posted to nohypetype.blogspot.com)

TessiePuzzlePieces contain puzzle pieces. The reason I created these shapes can be found at the link.

TessieStandingBirds was a result from a quest to see how many different Heesch types I could illustrate with birds standing on the backs of other birds.

TessieFlyingBirds has a large variety of flying birds. I tried to limit the use of characters that are not readily reached from the standard keyboard, so some flying bird shapes are on other Tessie fonts that are in the process of being put on Myfonts.com.

To get a tessellation pattern can require as few as one character but usually two, three, four, or six are required. The pattern above requires two characters because alternate rows are indented.

This illustration below shows three ways these fonts can be used. On the left is the solid style by itself, in the middle the solid style is overlaid with the outline style, and on the right the outline style is alone This shape is unusual because there are two ways to tile it. In the top six row of the picture, birds are flying both to the left and to the right. In the bottom four rows birds are flying only to the left.

For those who like the technical details of tessellations, the top birds are tiled as Heesch type TGGTCC while those on the bottom are tiled as Heesch type TG1G1TG2G2.

(Cross posted to nohypetype.blogspot.com)

Labels:
tessellations,
typefaces

## Friday, August 3, 2018

### Butterflies in Mazes Escher Would Like

Here are some further notes on the mazes in

One surprise I found was a hexagonal pattern that looked like it fit into a rectangular grid but when I made a maze with it, I found that it drifted. Below is a moth pattern that does not drift. The edges are labeled clockwise, with 1 being the horizontal edge on the right. Notice that to go down the column, one follows the pattern of 35263526 etc.

Below is a different butterfly pattern with its six edges labeled in the same way. Notice following the 35263526 route takes down and to the right.

One of my maze-making programs allows a correction to be made so that the maze will line up correctly.

Perhaps the most interesting pattern that I have found in the past few years is of butterflies such as the ones below.

*Mazes Escher Would Like*.One surprise I found was a hexagonal pattern that looked like it fit into a rectangular grid but when I made a maze with it, I found that it drifted. Below is a moth pattern that does not drift. The edges are labeled clockwise, with 1 being the horizontal edge on the right. Notice that to go down the column, one follows the pattern of 35263526 etc.

Below is a different butterfly pattern with its six edges labeled in the same way. Notice following the 35263526 route takes down and to the right.

One of my maze-making programs allows a correction to be made so that the maze will line up correctly.

Perhaps the most interesting pattern that I have found in the past few years is of butterflies such as the ones below.

The shape of the tile has mirror symmetry but it does not fit into any of the symmetrical types of Grünbaum and Shepard's classification. The tiling above is type CG1CG2G1G2. Because of the symmetry of the the shape, the translation block appears to be two rather than four.

There is another tiling possible, a TCCTCC type, shown below. To see the difference between the two, follow a diagonal from southwest to northeast. Below all the shapes have the same orientation along this diagonal. Above there are two oriented the same, then two different, etc.

Some of the other shapes that are included in the book have appeared in posts on this blog during the past few years and many have appeared in coloring books or in

*Exploring Tessellations*, but not in other maze books.
Seventy-nine of the 83 mazes use tessellations. Ten are geometric or abstract shapes, one is a symbol, 13 are mammals including people, 7 are other vertebrates, 11 are invertebrates, 6 are non-living objects, and 32 are bird shapes.

## Wednesday, July 18, 2018

### Further maze book revisions

After updating tessellating maze books in May, I updated some other books. While doing that I discovered patterns that made simple mazes quite difficult to solve. I could not resist the temptation to include some and so did a second round of revisions and updating. Below is a sample, though not an actual maze from either book. All the paths go through the corner swirls.

The updating resulted in the elimination of a number of common geometric tessellations that, while they made decent mazes, were not of much interest to those looking for visually-interesting tessellation.

In the maze above there are two shapes that tessellate. The top one is an example of isohedral class IH71. All edges are shaped the same and there is mirroring over a diagonal line. The bottom shape is an example of class IH61. The tile has two-fold rotational symmetry and uses the same edge as the top shape.

(If the maze above is presented with big openings through the sides rather than the little openings through the curved corners, it is trivially easy to solve. See below.)

The updating resulted in the elimination of a number of common geometric tessellations that, while they made decent mazes, were not of much interest to those looking for visually-interesting tessellation.

*Tantalizing Tessellating Mazes*had four additional pages changed and*More Tessellating Mazes*had 12 additional pages changed. As a result of the two 2018 revisions, both books have 39 new mazes and 45 holdover mazes.In the maze above there are two shapes that tessellate. The top one is an example of isohedral class IH71. All edges are shaped the same and there is mirroring over a diagonal line. The bottom shape is an example of class IH61. The tile has two-fold rotational symmetry and uses the same edge as the top shape.

(If the maze above is presented with big openings through the sides rather than the little openings through the curved corners, it is trivially easy to solve. See below.)

## Sunday, July 8, 2018

### Revisions

The introduction to

The three books contain over 300 tessellation designs and each is unique to one book. The first two of the books listed above were designed before the adult-coloring-book fad hit and were meant for children. The last book was intended for adults but it lacks the fussiness that many of the adult colorers seem to desire.

They all still have some weak designs and some geometric tilings that are in the public domain so if in the future I find additional interesting tessellating shapes, there may be more revisions.

*A Final Coloring Book of Tessellations*noted that "as I stumble on additional patterns ... I can use the better discoveries to update and revise this and the previous books." In the past few weeks I have revised*A Tessellating Coloring Book*,*More Tessellations Coloring Book*, and*A Final Coloring Book*. New patterns (and thus deleted patterns) were six for the first book, eleven for the second, and seven for the last.The three books contain over 300 tessellation designs and each is unique to one book. The first two of the books listed above were designed before the adult-coloring-book fad hit and were meant for children. The last book was intended for adults but it lacks the fussiness that many of the adult colorers seem to desire.

They all still have some weak designs and some geometric tilings that are in the public domain so if in the future I find additional interesting tessellating shapes, there may be more revisions.

Labels:
coloring book,
tessellations

## Thursday, July 5, 2018

### The ongoing journey

*Exploring Tessellations: A Journey through Heesch Types And Beyond*was published in October, 2015 and then for the next year was repeatedly updated as mistakes were corrected, new material added, and sections reorganized. The last of those updates was at the end of 2016. Since that last update I have designed an activity book and another maze book as well as updating two earlier maze books. The work on these books provided enough new material to justify going back and reviewing the content and organization of

*Exploring Tessellations*.

This revision of June 2018 adds many new tilings as examples and deletes some old tilings that were substandard. It also reorganizes the section on Heesch types. The original organization of that section was based on efforts to find standing birds that tessellated. That whimsical organization was replaced with a more standard organization that stresses Heesch families. Heesch and his co-author showed that their list of 28 types consisted of nine main types from which the other 19 types could be derived by shrinking edges to zero. For example, type TTTT results when one of the TT pairs in type TTTTTT shrinks away.

These chess pieces were added as an example of isohedral class IH69. The tile has symmetry over a diagonal. It simultaneously fits Heesch types CCCC, G1G1G2G2, and CCGG. In this example two edges are straight, but that is not a requirement of class IH69.

This next image has been in the book from the start as an illustration of isohedral class IH91. It also has reflective symmetry. It is based on an isosceles triangle and one edge must be straight for it to have that symmetry. It fits both Heesch type CCC and CGG.

Finally, below is a new example of Heesch type CC3C3 (IH39), which is the hardest of the Heesch type to form into Escher-like tessellations. It could be a leaf on a twig or a rosebud.

The book has hundreds of other illustrations and is one of the few sources that explain both the Heesch classification and the isohedral classification of Grünbaum and Shepard.

## Tuesday, June 5, 2018

### Mazes Escher would like

Since

The result is

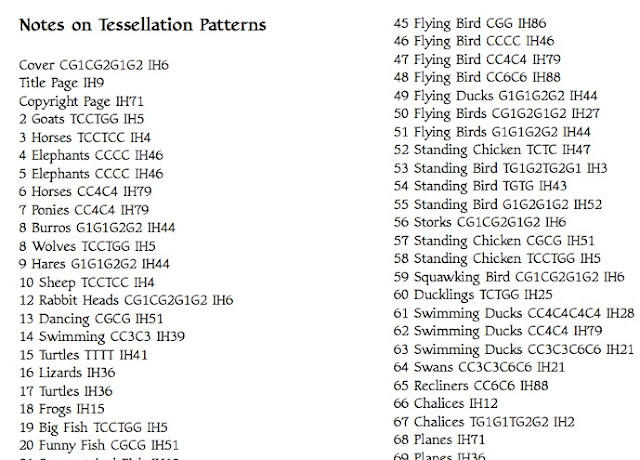

The book contains 83 mazes moderately difficult mazes suitable for older children and adults. Something new for my maze books is a table showing the Heesch types and isohedral classifications of each pattern used.

There are 36 IH groups represented and 24 of the 27 Heesch types. The Heesch types missing are C3C3C3C3C3C3, C3C3C3C3, and C3C3C6C6.

The book has a lot of bird patterns (32 of the 83) because for some reason birds pop out when I am looking for tessellations.

One of the odder bird designs in the book is the one below, shown in the sample maze that I use to keep track of the many maze typefaces I have. It makes an interesting maze.

It presented a challenge because my maze generation program only allows triangle-based mazes to have two orientations but this pattern has four. The solution was to print it using two typefaces. My maze generating programs were written in the over twenty years ago in a defunct computer language for an obsolete operating system that no longer runs on modern hardware. Sometimes it takes some effort and creativity to get the output I want.

In late 2015 I was playing with a group of tilings that I dubbed the "Fab Fours" and which found a home in the

It is not an Escher-like tessellation, but Escher also dabbled in various geometric shapes. (There are four mazes at the end that are not framed with tessellations. Three of them have over/under paths and I wanted to include a few just in case this is the last maze book I ever design.)

*Holiday Mazes*was published in early 2015, I have continued to develop tessellations for several coloring books, an activities book, and*Exploring Tessellations: A Journey through Heesch Types And Beyond*. Recently I realized that I had more than enough new tessellation designs for another maze book focused on tessellations.The result is

*Mazes Escher Would Like*. The name is descriptive because the most of the mazes use Escher-like tessellations, that is, shapes that both tessellate and resemble real world objects. It is also an obvious attempt to have a title that might turn up in search results on Amazon, which is the only place that will be selling the book.The book contains 83 mazes moderately difficult mazes suitable for older children and adults. Something new for my maze books is a table showing the Heesch types and isohedral classifications of each pattern used.

There are 36 IH groups represented and 24 of the 27 Heesch types. The Heesch types missing are C3C3C3C3C3C3, C3C3C3C3, and C3C3C6C6.

The book has a lot of bird patterns (32 of the 83) because for some reason birds pop out when I am looking for tessellations.

One of the odder bird designs in the book is the one below, shown in the sample maze that I use to keep track of the many maze typefaces I have. It makes an interesting maze.

It presented a challenge because my maze generation program only allows triangle-based mazes to have two orientations but this pattern has four. The solution was to print it using two typefaces. My maze generating programs were written in the over twenty years ago in a defunct computer language for an obsolete operating system that no longer runs on modern hardware. Sometimes it takes some effort and creativity to get the output I want.

In late 2015 I was playing with a group of tilings that I dubbed the "Fab Fours" and which found a home in the

*Delightful Designs: A Coloring Book of Magical Patterns*. I tried to use a few shapes that I had found then to make mazes. An example is a three-edged shape that makes for a visually attractive maze.It is not an Escher-like tessellation, but Escher also dabbled in various geometric shapes. (There are four mazes at the end that are not framed with tessellations. Three of them have over/under paths and I wanted to include a few just in case this is the last maze book I ever design.)

## Tuesday, May 29, 2018

### A couple of revisions to tessellating maze books

When I designed

In the six years since the publication of these two books I have devoted considerable time to finding new tessellation patterns. Most of what I have found has been used in other maze books, but I early in 2018 I realized that I still had enough unused material to revise and upgrade both

Both books had 70 pages of mazes and 35 pages of solutions, with two solutions per page. The revisions shrink the solutions so that four fit on a page. This change frees up space for an additional fourteen mazes with no change in page count. In addition I dropped patterns that I thought were the least interesting and replaced them with new patterns and mazes. As a result, both books now have a greater percentage of Escher-like mazes, that is, mazes based on shapes that resemble real world objects rather than geometric, abstract shapes. In

The order of mazes has been changed. The new mazes are slightly more difficult than the mazes they replace, but they still seem best described as fairly easy and appropriate for ages 8 and older. Both books have many bird tessellations because I seem prone to find bird shapes as I toy with

Some of the shapes used in the books have previously appeared on this blog. Here is a bird tessellation illustrated with a small sample maze that I used to keep track of maze typefaces.

The pattern below comes from the quilting world. This maze allows not only horizontal and vertical passages but also passages through the corners. The shape is nothing special but the corner passages make even small mazes a challenge. (This is not a maze from the book but a sample maze to illustrate the pattern.)

*Tantalizing Tessellating Mazes*in 2011 and 2012 I not only had enough tessellation patterns to produce 70 mazes for this book, but had enough left over to do another 70 mazes in*More Tessellating Mazes*. Many of the tessellations were common geometric shapes. At the time I did not see this as a shortcoming because I was more focused on mazes than on tessellations.In the six years since the publication of these two books I have devoted considerable time to finding new tessellation patterns. Most of what I have found has been used in other maze books, but I early in 2018 I realized that I still had enough unused material to revise and upgrade both

*Tantalizing Tessellating Mazes*and*More Tessellating Mazes*.Both books had 70 pages of mazes and 35 pages of solutions, with two solutions per page. The revisions shrink the solutions so that four fit on a page. This change frees up space for an additional fourteen mazes with no change in page count. In addition I dropped patterns that I thought were the least interesting and replaced them with new patterns and mazes. As a result, both books now have a greater percentage of Escher-like mazes, that is, mazes based on shapes that resemble real world objects rather than geometric, abstract shapes. In

*Tantalizing Tessellating Mazes*35 of the mazes are new and 49 are carried over from the previous edition. The numbers for*More Tessellating Mazes*are 27 new and 57 holdovers.The order of mazes has been changed. The new mazes are slightly more difficult than the mazes they replace, but they still seem best described as fairly easy and appropriate for ages 8 and older. Both books have many bird tessellations because I seem prone to find bird shapes as I toy with

*Tesselmaniac!*. (*Tantalizing Tessellating Mazes*has 29 bird tessellations and*More Tessellating Mazes*has 21.)Some of the shapes used in the books have previously appeared on this blog. Here is a bird tessellation illustrated with a small sample maze that I used to keep track of maze typefaces.

The pattern below comes from the quilting world. This maze allows not only horizontal and vertical passages but also passages through the corners. The shape is nothing special but the corner passages make even small mazes a challenge. (This is not a maze from the book but a sample maze to illustrate the pattern.)

Both books are available on Amazon and links to them are in the side margin.

Labels:
really easy mazes,
tessellations

## Saturday, May 5, 2018

### Tessellating activities

It has been over a year since I last published a book via CreateSpace, and since then CreateSpace has ceased to sell books; all sales are now through Amazon. If you click on any CreateSpace link in a previous post, it will take you to an Amazon page.

I have not spent much time or effort with tessellations (or mazes) since

Below are examples of some of the types of puzzles in

The book contains 14 mini-Sudoku puzzles. (The bird-head shape was in preliminary versions of the book but was dropped before it was published because it is a low-quality design.)

A second type of puzzle is a word search, which also use grids. The grid here is provided by a weird shape that was never in any version of the book but which works well for this type of puzzle. Words can be vertical, horizontal, or diagonal and they may be reversed. Find the following words: reflect, valence, hexagon, rotate, escher, glide, flips, edge. The letters not used in any of these words will spell another word that is related to tessellations.

I have not spent much time or effort with tessellations (or mazes) since

*Tessellating Animals Activity Book*was published in January 2017. A post at the time tried to indicate what kind of activities were in the book, but the illustrations were of partial puzzles that could not be solved. The sample pages that Amazon shows are even less revealing of what is in the book.Below are examples of some of the types of puzzles in

*Tessellating Animals Activity Book*. First is a mini-Sudoku. Normal Sudoku puzzles are 9-by-9 grids, but simpler versions can be constructed with 4-by-4 or 6-by-6 grids. The puzzle below uses numbers 1 through 6. All rows and all columns must have each number only once. In addition, there are six boxes indicated by the shading and each of those boxes must also have each of the six numbers only once.The book contains 14 mini-Sudoku puzzles. (The bird-head shape was in preliminary versions of the book but was dropped before it was published because it is a low-quality design.)

A second type of puzzle is a word search, which also use grids. The grid here is provided by a weird shape that was never in any version of the book but which works well for this type of puzzle. Words can be vertical, horizontal, or diagonal and they may be reversed. Find the following words: reflect, valence, hexagon, rotate, escher, glide, flips, edge. The letters not used in any of these words will spell another word that is related to tessellations.

There are ten word-search puzzles in the book and all are larger than this one.

There are eleven pages of decoder puzzles in the book and most of those pages have more than one puzzle. In the puzzle below the letters have been replaced by their position in the alphabet: A=1, B=2, C=3, etc.

This shape was a first attempt to find a standing bird that fit Heesch type TGTG. It is not very good and I have found better ways to illustrate the type.

The book contains a number of mazes, some of the traditional variety but others that are coded. They are simpler than the coded mazes in the book

*Hidden Path Mazes: Decode to Solve.*
The various puzzles and activities are supplemented with explanations of basic characteristics of tessellations.

## Friday, April 20, 2018

### Tessellating wine glasses

Goblets, wine glasses, or chalices are easy to tessellate and if you search the Internet for images you should be able to find at least two ways in which the shape fits into a tiling pattern. Below is one of these ways.

The five-edged goblets are an example of isohedral class IH26. IH26 is the result of bisecting isohedral class IH17. If the straight bottom is considered an edge of central rotation, the pattern fits Heesch type TCTCC. If it is an edge of reflection, it is not a Heesch type.

If we slide alternate rows, each glass has six neighbors rather than the five in the pattern above.

When the six-edged goblets are centered over each other as in the image above, we have an example of isohedral class IH15, which simultaneously fits Heesch types TCCTCC, TCCTGG, and TG1G1TG2G2.

The other easy way to tessellate this shape is to stack them in the pattern below.

This arrangement is an example of isohedral class IH12 that simultaneously fits Heesch types TTTTTT and TG1G1TG2G2. Four of the edges are identically shaped.

All six edges can be identically shaped and the image still resembles a chalice or wine glass.

However, this shape can also be fit together in a different way, one that I have not found on the Internet.

It is an example of Heesch type TG1G1TG2G2 but not of TTTTTT. Can you find the TT pair?

The five-edged goblets are an example of isohedral class IH26. IH26 is the result of bisecting isohedral class IH17. If the straight bottom is considered an edge of central rotation, the pattern fits Heesch type TCTCC. If it is an edge of reflection, it is not a Heesch type.

If we slide alternate rows, each glass has six neighbors rather than the five in the pattern above.

When the six-edged goblets are centered over each other as in the image above, we have an example of isohedral class IH15, which simultaneously fits Heesch types TCCTCC, TCCTGG, and TG1G1TG2G2.

The other easy way to tessellate this shape is to stack them in the pattern below.

This arrangement is an example of isohedral class IH12 that simultaneously fits Heesch types TTTTTT and TG1G1TG2G2. Four of the edges are identically shaped.

All six edges can be identically shaped and the image still resembles a chalice or wine glass.

However, this shape can also be fit together in a different way, one that I have not found on the Internet.

It is an example of Heesch type TG1G1TG2G2 but not of TTTTTT. Can you find the TT pair?
